Description

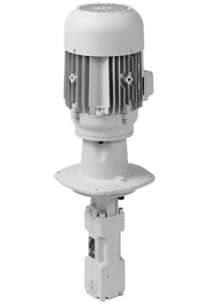

TechnoFlow High-Pressure Coolant Systems (THPCS)High-Performance Design

Models

• THPCS-32/00
• THPCS-35/00
• THPCS-44/00
• THPCS-60/00
• THPCS-72/00
• THPCS-76/00

Our spindle screw pumps feature robust silicon carbide housings and highly wear-resistant spindles, enabling them to achieve extremely high pressures. Specifically designed for pumping filtered and lubricating fluids, such as coolant oils and water-soluble coolants, THPCS pumps deliver reliable performance and longevity.

Key Benefits
– High-pressure capability: Ideal for demanding applications requiring consistent pressure.
– Long-lasting components: Silicon carbide housing and wear-resistant spindles minimize maintenance and downtime.

Important Operating Guidelines
– Ensure adequate fluid supply: Dry-running is not permitted and can cause damage to the pump.
– Install pressure relief valve: As a positive displacement pump, a pressure relief valve is mandatory to prevent over-pressurization and potential system failure.

Applications and Fluid Compatibility
Our pumps are engineered for diverse industrial applications, expertly handling a range of fluids, including:

Compatible Fluid Types
– Oils: Cooling/cutting oils, lubricating oils, and other petroleum-based fluids
– Coolants: Water-soluble coolants, synthetic coolants, and other specialized cooling fluids

Fluid Specifications
– Kinematic Viscosity: 1 – 90 mm²/s (cSt) for standard applications; higher viscosities (over 90 mm²/s) available upon request
– Pumping Temperature: up to +135 °C (+275 °F) for optimal performance in high-temperature environments

Recommended Filtration Levels
To ensure optimal pump performance and longevity, we recommend the following filtration levels:

– Turning, Drilling, Milling: 80 μm filtration to protect against larger particles and contaminants
– Grinding and Machining of Aluminum (CBN, etc.): 50 μm filtration to ensure precise machining and prevent damage from smaller particles
