Description

Vortex Pump

The Vortex Pump is a horizontal, single-stage, single-suction, volute mixed-flow pump designed for efficient liquid transportation. It’s suitable for handling clean water or other liquids with similar physical and chemical properties, with a maximum temperature of 150°C (302°F).

Applications:
This pump is widely used in various settings, including:

– Farmland irrigation and drainage
– Industrial water supply and drainage
– Urban water supply and drainage

Transmission Forms:
The Vortex Pump offers two transmission options:

– Direct drive
– Variable speed drive

Power Sources:
Common power sources include:

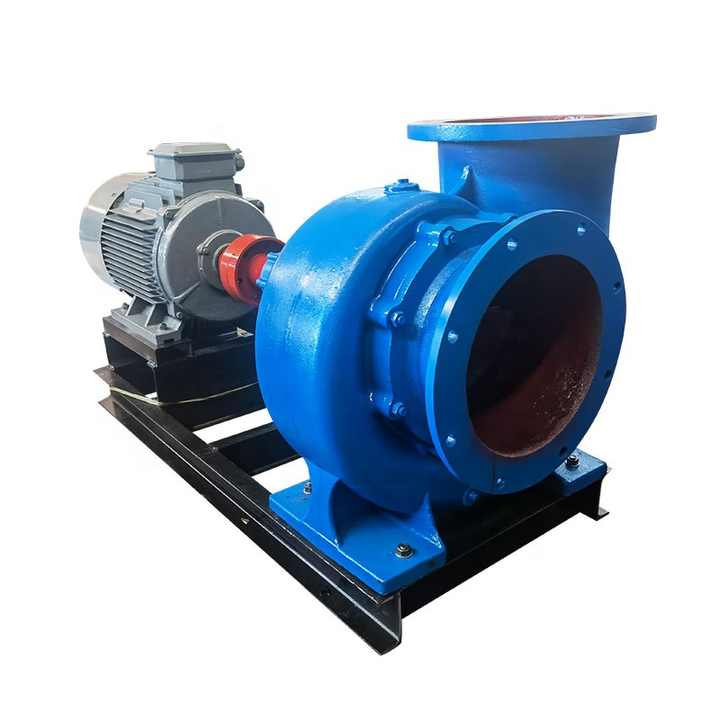

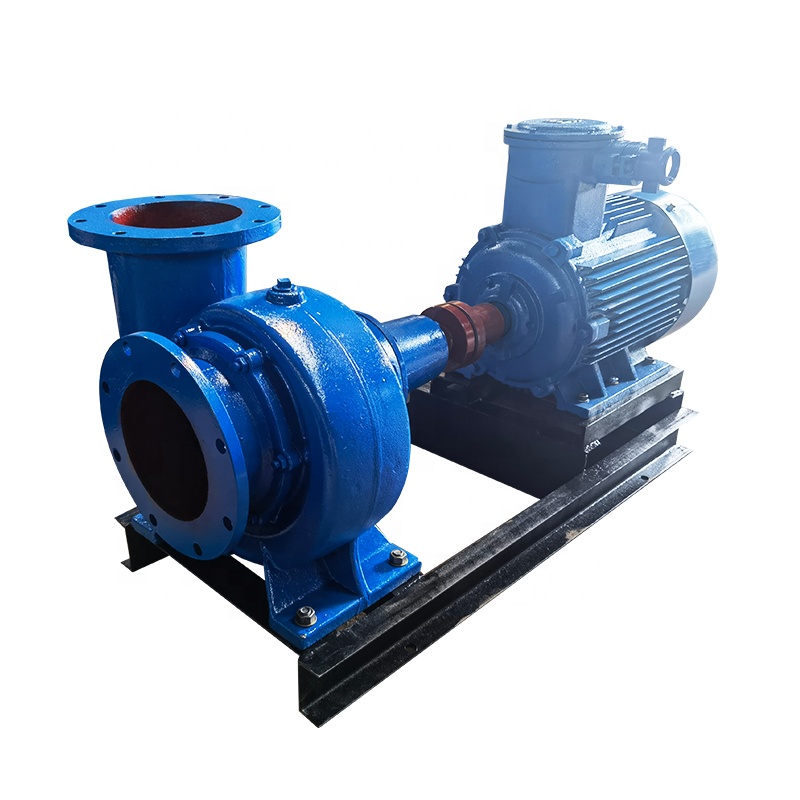

– Electric motors

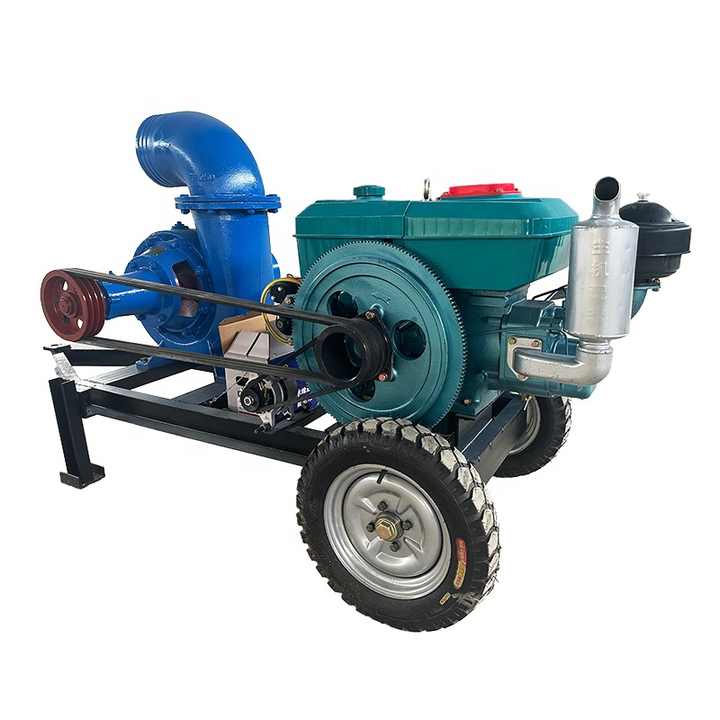

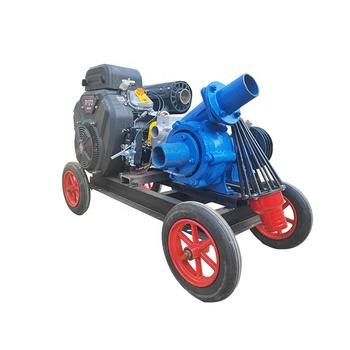

– Diesel engines

Advantages:
The Vortex Pump boasts several advantages, including:

– Simple structure
– Reliable use
– Convenient installation and maintenance
– High efficiency
– Compact design (small size and light weight)

Performance Parameters:
The Vortex Pump’s performance parameters include:

– Flow range: 70-19000 m³/h (18.5-5,377 GPM)
– Head range: 3.7-21.5 m (12-70.5 ft)
– Power range: 3-450 kW (4-1603 HP)

Materials:
The pump’s construction features durable materials, including:

– Cast iron
– Stainless steel

These specifications make the Vortex Pump a versatile and reliable solution for various liquid handling applications.
